Using AAA policy in DataPower for Basic Authentication

In the Datapower AAA represents three security processes - Authentication, Authorization and Auditing

An AAA policy identifies a set of resources and procedures that determine whether a requesting client is granted access to a specific service, file, or document. AAA policies can be considered a type of filter, for they accept or deny a specific client request.

AAA policies are powerful and flexible. They support a range of authentication and authorization mechanisms.

Authentication - verifies the identity of the request client.

Authorization - determines whether the client has access to the requested resource.

Auditing – keeps records of any attempts to access resources.

Example: We will create a MPGW which will allow client to send JSON request with Authorization header and allow client to access backend on successful authorization, in our case we will skip backend and return the same request which client sent.

Create a MPGW

Click on Multi-Protocol Gateway and click on Add button

Assign a name to the MPG service.

Choose dynamic-backend from Type field.

Creation of Policy

After clicking on + of Multi-Protocol Gateway Policy you will get policy as below. Assign a name to a policy. Create a new rule, select the rule direction as “Client to Server” and configure the “Match” action as follows.

Creation of Rules

Double click on match action then “Configure Match Action” window appears Drop down the Matching Rule, you will get all the list of already existed “matching rules” and pick one of them. We are using all which will match all the incoming URI’s

Adding a AAA Action

Now drag and drop the “AAA action”  on to the “client to server” rule as shown below.

Double click on “AAA action” to configure it.

After double clicking on AAA action you redirect to bellow page. To create new AAA policy click on symbol from “AAA policy” field.

Name the policy. For this exercise let it be “AAA_demo”.

Click on create.

Extracting User Identity

After clicking on create you will get page like bellow. Choose “HTTP Authentication header” from the all given checks in identification methods and click on “next”.

Authenticating the user

Choose “use AAA information file” among the methods given. In “URL” set path to local and choose “AAAinfo.xml” from the list

Click on Next

Extracting the Resource

From the Resource Identification Methods field select “URL sent by client” in given checks and click on next

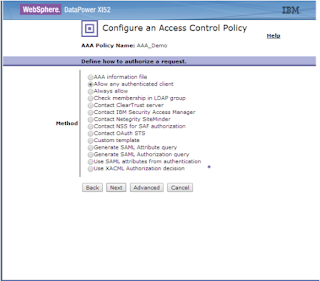

Authorizing the Request

Select “Allow any authenticated client” from the all given options

Leave all other option to default in next page and commit.

Drag and drop the “advanced action” on to the “client to server rule”.

Double click on “advanced action” to configure it.

In order to set dynamic-backend choose “Set variable” method in operation and click on next.

Click on “var Builder” in “service variable” field.

In set variable field click on “service variable” then you can see a list of variable names like below. From the list of variable select “var://service//mpg/skip-backside”.

We will add Convert Query Params to XML to client to server rule which will look as below.

Final Step: Configure HTTP FSH handler by providing the local IP address and port and test the service.Also configure the request and response type to NON-XML (As we are using JSON)

Note:

We used Convert Query Prams to XML action as AAA policy only understands XML and our input request is JSON.

So we need to do the JSON->XML conversion before AAA.

As we need to send same JSON received from client to backend and we are not using the request content anywhere in our flow. But the output of Convert Query Prams to XML will be JSONX, so we will set the Input to Set Variable action to INPUT context variable which contains the original request received.

Note: To view the JSON request (NON-XML) passed from client in Probe Go to Rule we created for the service in from Objects screen as below and turn on the Non-XML  Processing

Objects à XML Processing à Processing Rule à Select the Rule and enable the Non-XML Processing
